BRINGING IT ALL TOGETHER

Technology for technology’s sake does nothing. Technology applied well, changes everything.
At SmartRay we focus on a number of core proprietary technologies that when deployed together redefine the 3D Sensor market.
Here are just a few of the SmartRay innovations incorporated into our products:

  • Calibration

    All our sensors are pre-calibrated, so they deliver precise, repeatable
    measurements, right down to the micrometer range, as soon as they are
    installed.

  • Sensitivity

    Through innovative optical design, the light sensitivity of our 3D Sensors
    in optimised, allowing the use of lower category lasers that avoid the
    need for expensive shielding and protection.

  • Integration

    With optics and laser illumination included in every 3D Sensor, we have
    eliminated the need for lenses and lighting to be evaluated, tested and
    purchased for each application.

  • Reflectivity

    Our unique filtering technology helps our 3D Sensors create high quality,
    reliable images of products with reflective surfaces that would otherwise
    be impossible to inspect or measure.

  • Size

    By carefully miniaturising every component, we have created the
    smallest, lightest range of 3D Sensors available anywhere, so they are
    easier to fit on any production line.

  • Software integration

    To ensure our 3D Sensors can be used with as wide a range of vision
    software as possible, we have created a set of communication and set
    up software tools that are quick and easy to use.

  • Resolution

    By incorporating the latest high resolution image sensors into our
    products, we can measure more accurately, detect smaller defects and
    control automation more precisely than with any other 3D Sensor.

HOW OUR 3D SENSORS WORK

Visualize 3D!

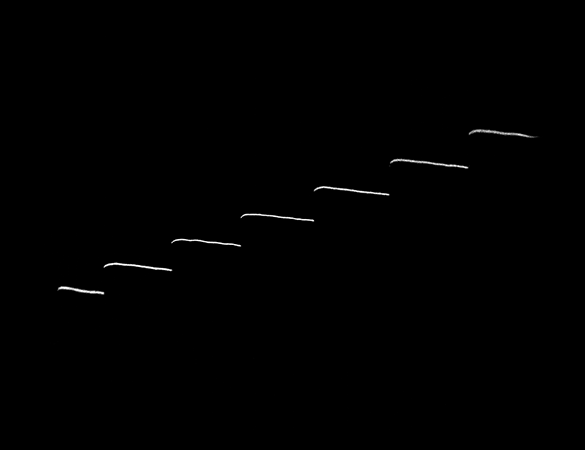

SmartRay 3D Sensors work based on the principle of laser triangulation. A laser line is projected onto the object, which is reflected back onto an image sensor. Due to the angle between
the laser line and the image sensor, the reflected laser line appears at different positions in the image depending on the height of the object at each point. The 3D Sensor measures the
profile of the object. Relative movement between the object and the 3D Sensor creates a full 3D model of the object.

  • To inspect and measure use the 3D PointCloud or the “Z-Maps”.
    The hight of the object is displayed in real mm.

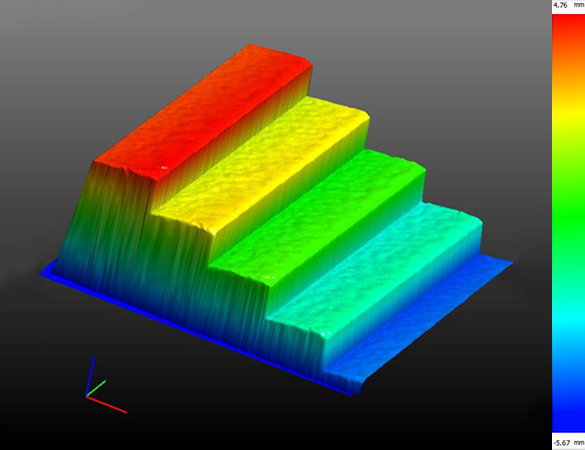

  • Z-Map with 3D Visualization in mm

Do more with SmartRay 3D™

SmartRay’s 3D Sensors capure additionally the Intensity and Laser Line Thickness information from your part.
By using our 3D Sensors, you will also have the 2D information availabe. 3D = 2D + more!

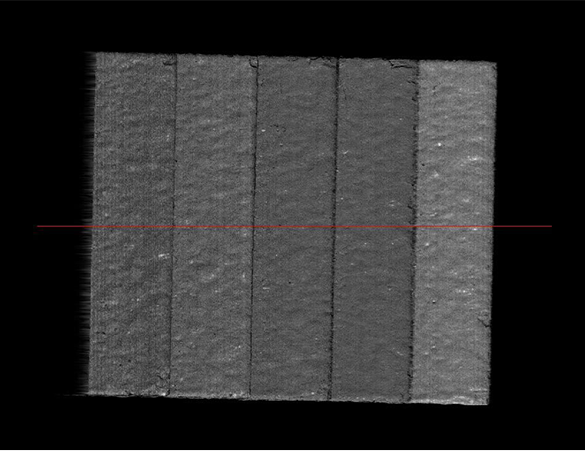

  • Intensity

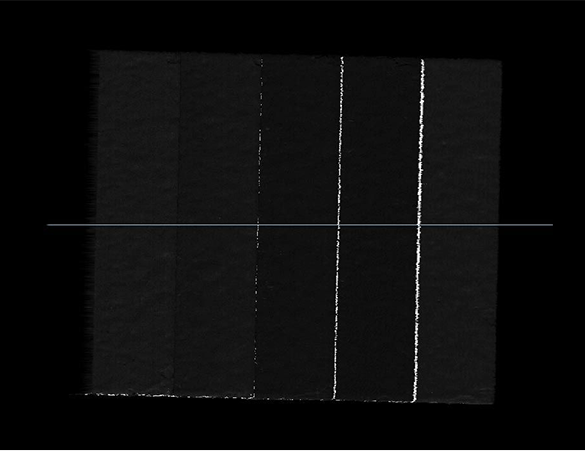

  • Laser Line Thickness
