Identifying the relative position and
orientation of a vehicle hub and the
wheel on a moving production line
requires real-time 3D position
information. SmartRay 3D guides the
assembly robot to attach the wheel to
the vehicle in a fully automatic process.

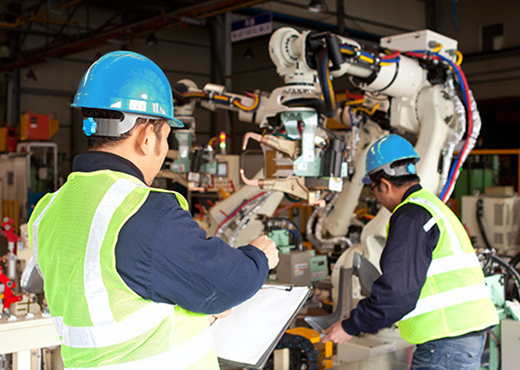

Using robots to assemble high volume
products like TVs and Radios has helped
drive manufacturing cost reductions.
However, for some assembly operations
robots need to be guided by SmartRay
3D sensors to ensure all parts are
correctly inserted and positioned.

For products to be shipped securely it is
vital that they are packaged correctly.
Inspecting the coverage and volume of
transparent glue on a cardboard surface
is hard to monitor manually. But with
SmartRay 3D, consistent packaging
quality is much easier to achieve.

Checking the size and shape of
individual pharmaceutical tablets is
important to ensure the correct
dosage is given to patients every time.
SmartRay 3D measures the volume of
tablets and detects any surface damage
or cracking that may have occurred.
