스마트레이

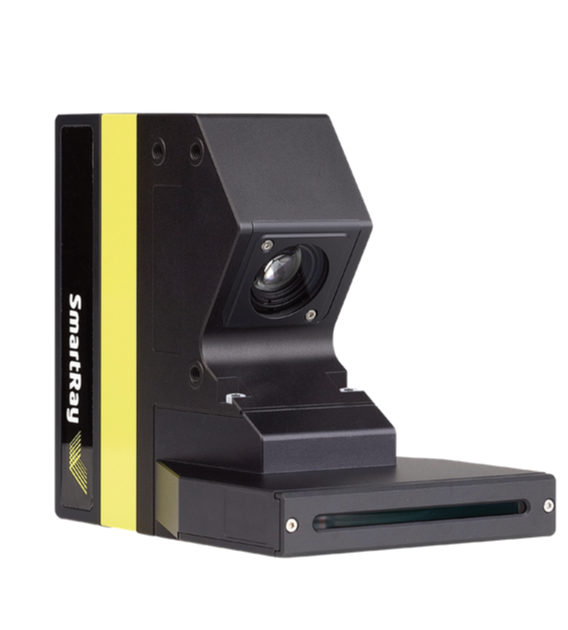

ECCO X 050G

대구경 정반사 센서

ECCO X G 시리즈는 최대 40 kHz의 스캔 속도와 최대 4096 포인트 ECCO X 의 강점과 정반사, 투명체 특화 광학계 적용으로 정확하고 정밀하며, 빠르고 유연한 스캐닝 솔루션을 제공합니다.

Properties & Benefits

EXTRAORDINARY SPEED: up to 40 kHz scan rate

EXCEPTIONAL RESOLUTION: 4096 3D points

SmartRay™ ECCO X 050G

Typical field of view (near \| mid \| far) 1	45.5 \| 48.8 \| 45.5 mm
Typical measurement range 1	15 mm
Stand-off distance	32.5 mm
Typical vertical resolution (Z) 1	2.2 - 2.9 μm
Typical lateral resolution (Y) 1	11 - 13 μm
Z-linearity 2, 5	0.007 %
Z-repeatability 4, 5	0.4 μm
weight	Approx. 1200g
Laser wavelength	450 nm (blue)
Maximum points / 3D profile	4096
Typical scan rate 1	Up to 40 kHz
Typical 3D point rate 1	Up to 163 million points/sec
Interface	Gigabit Ethernet ( 1 Gbit/ sec)
Inputs	2x Inputs (5 – 24 VDC) Quadrature Encoder (AB-Channel, RS-422 standard)

Note: Typical values may vary up to ±5% due to optical and production tolerances
1 Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time. A ‚scan‘ by definition considers maximum points/3D profile i.e. full FOV.
The typical scan/point rate range has been estimated considering an exposure time of 1 μsec, min-max MR and full FOV. The typical scan rate can be further boosted by windowing the FOV.
