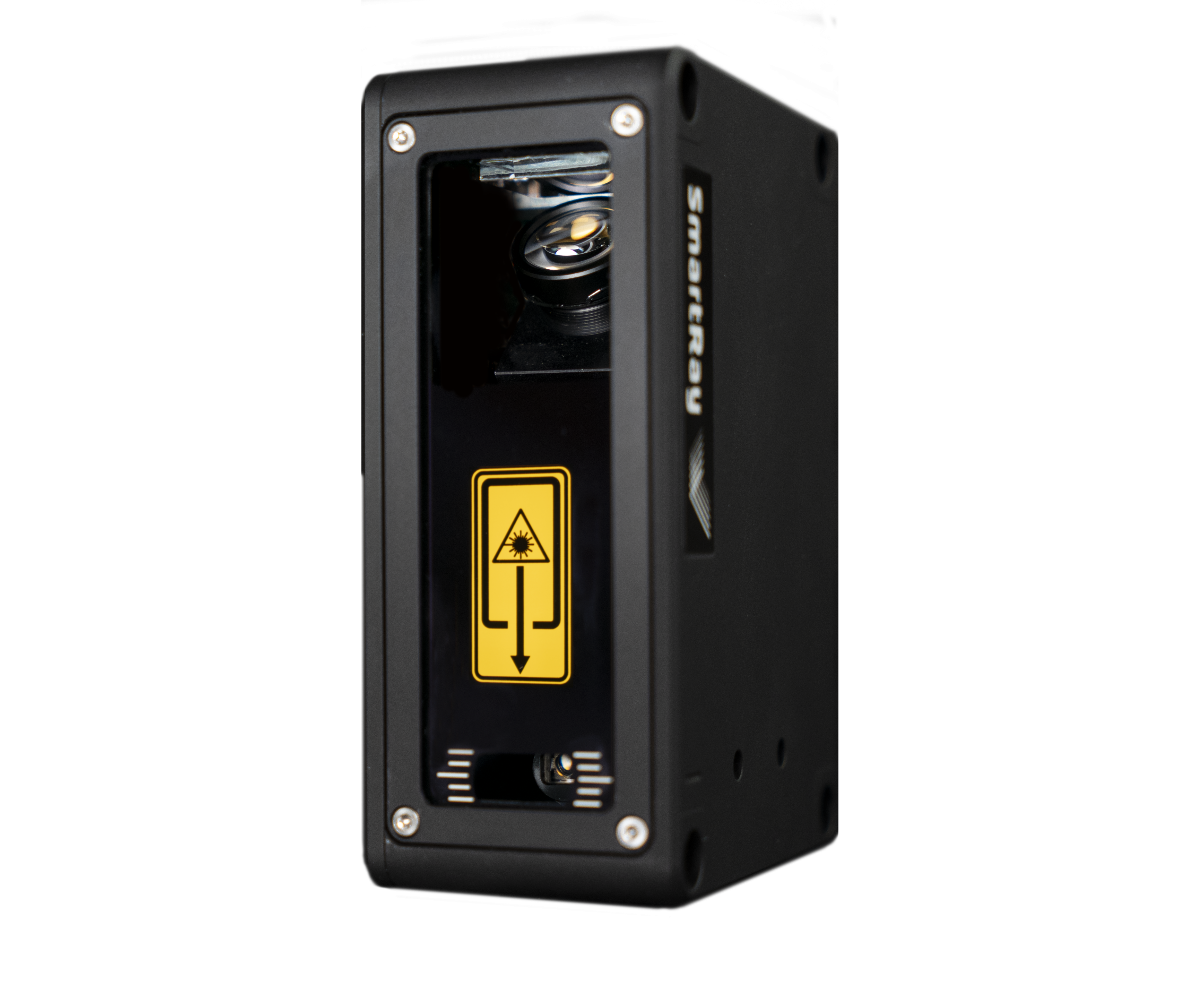

ECCO 85.100+

우수한 3D 이미지 품질

경제적인 ECCO 85+ 시리즈는 비용 효율적인 성능을 갖췄으며, 고품질 3D 이미지를 통해 신뢰할 수 있는 검사와 측정을 제공합니다. 콤팩트한 산업용 하우징으로 기계 및 로봇 통합 환경에서 안정성과 유연성을 제공합니다.

Properties & Benefits
Economic & compact
Best price - Performance sensor
Superior 3D image quality
For reliable inspection & measurement
Industrial compact housing
Stability and flexibility for machine and robot integration
SmartRay™ ECCO 85.100+
Typical field of view (near | mid | far) 172 | 98 | 124 mm
Typical measurement range 1100 mm
Stand-off distance145 mm
Typical vertical resolution (Z) 15 - 12 μm
Typical lateral resolution (Y) 142 - 70 μm
Z-linearity 2, 50.002 %
Z-repeatability 4, 52 μm
weightApprox. 550g
part numbers
  • 3.002.128 (class 2)
  • 3.004.128 (class 3R)

Maximum points / 3D profile1920
Typical scan rate 1Approx. from 1 kHz up to 5 kHz (with full FOV)
Typical 3D point rate 1Approx. from 1 up to 8 million points/sec
InterfaceGigabit Ethernet ( 1 Gbit/ sec)
Inputs2x Inputs (5 – 24 VDC) Quadrature Encoder (AB-Channel, RS-422 standard)
Note: Typical values may vary up to ±5% due to optical and production tolerances
1 Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time. A ‚scan‘ by definition considers maximum points/3D profile i.e. full FOV.
The typical scan/point rate range has been estimated considering an exposure time of 1 μsec, min-max MR and full FOV. The typical scan rate can be further boosted by windowing the FOV.
