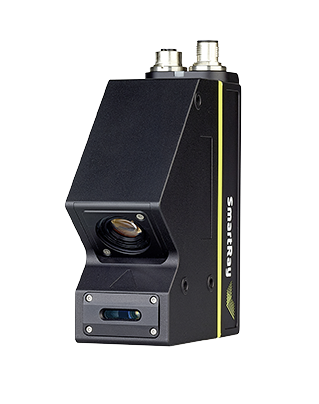

ECCO X 012

빠른 고해상도 스캐닝

동급 최소의 콤팩트한 디자인이 돋보이는 ECCO X는 최대 40 kHz의 스캔 속도와 최대 4096 포인트의 고해상도 3D 프로파일이 결합되어 있습니다. 정확하고 정밀하며, 빠르고 유연한 스캐닝 솔루션을 제공합니다.

Properties & Benefits
EXTRAORDINARY SPEED
up to 40 kHz scan rate
EXCEPTIONAL RESOLUTION
4096 3D points
MAXIMUM FLEXIBILITY
4 connector options
COMPACT DESIGN
smallest in its class
SmartRay™ ECCO X 012
Typical field of view (near | mid | far) 111 | 12 | 13 mm
Typical measurement range 16 mm
Stand-off distance30.5 mm
Typical vertical resolution (Z) 10.3 - 0.4 μm
Typical lateral resolution (Y) 12.7 - 3.2 μm
Z-linearity 2, 50.006 %
Z-repeatability 4, 50.06 μm
weightApprox. 800g
part number

  • 3.004.135

  •  3.204.1353.104.1353.304.135
  •
Maximum points / 3D profile4096
Typical scan rate 1Up to 40 kHz
Typical 3D point rate 1Up to 163 million points/sec
InterfaceGigabit Ethernet ( 1 Gbit/ sec)
Inputs2x Inputs (5 – 24 VDC) Quadrature Encoder (AB-Channel, RS-422 standard)
Note: Typical values may vary up to ±5% due to optical and production tolerances
1 Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time. A ‚scan‘ by definition considers maximum points/3D profile i.e. full FOV.
The typical scan/point rate range has been estimated considering an exposure time of 1 μsec, min-max MR and full FOV. The typical scan rate can be further boosted by windowing the FOV.
