ECCO 95.015G

고정밀 유리 검사

콤팩트한 디자인으로 우수한 3D 데이터 품질을 제공하는 ECCO 95+ Glass 시리즈는 평면 및 반사성의 고반사 표면을 스캔할 수 있도록 개발되었습니다. 신뢰할 수 있는 ECCO 95+ 센서 기술과 최적화된 광학을 결합하여 빠르고 정확한 고해상도 스캐닝 솔루션을 제공합니다.

Properties & Benefits
SPECIAL
Designed specifically to measure glass and specular surfaces
EXTRAORDINARY SPEED
High-speed 3D scanning
BEST QUALITY
Superior 3D image quality
EXCEPTIONAL RESOLUTION
Ultra-high-resolution imaging
COMPACT DESIGN
Economic and compact

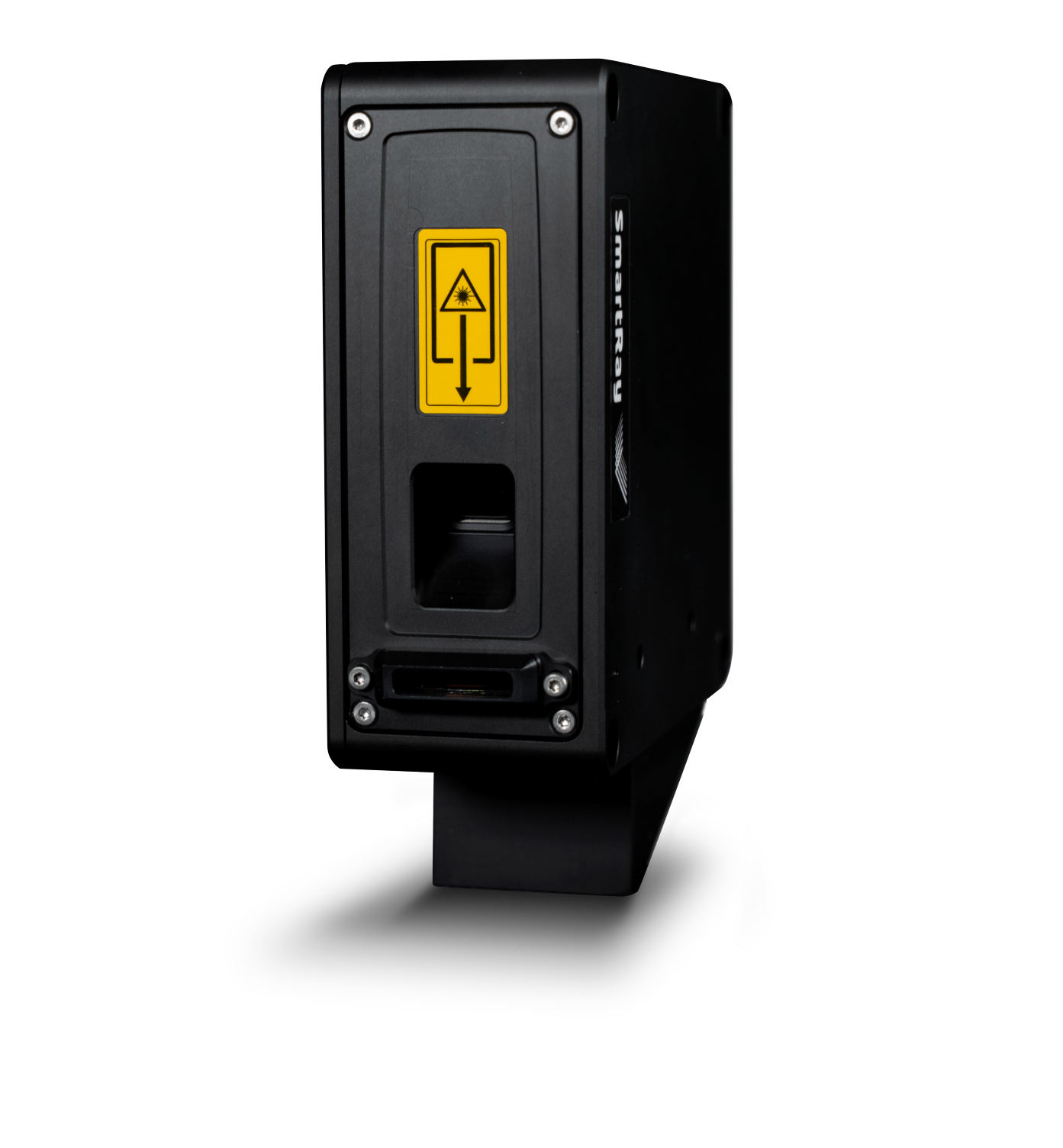

SmartRay™ ECCO 95.015G
Typical field of view (near | mid | far) 111 | 12 | 11mm
Typical measurement range 15.6 mm
Stand-off distance23.5 mm
Typical vertical resolution (Z) 10.42 - 0.54 μm
Typical lateral resolution (Y) 16.0 - 6.8 μm
Z-linearity 2, 50.015 %
Z-repeatability 4, 50.15 μm
weightApprox. 775g
part numbers
  • 3.001.191 (class 2)
  • 3.004.191 (class 3R)

Maximum points / 3D profile1920
Typical scan rate 1Approx. from 1 kHz up to 10 kHz (with full FOV)
Typical 3D point rate 1Approx. from 0.7 up to 15 million points/sec
InterfaceGigabit Ethernet ( 1 Gbit/ sec)
Inputs2x Inputs (5 – 24 VDC) Quadrature Encoder (AB-Channel, RS-422 standard)
Note: Typical values may vary up to ±5% due to optical and production tolerances
1 Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time. A ‚scan‘ by definition considers maximum points/3D profile i.e. full FOV.
The typical scan/point rate range has been estimated considering an exposure time of 1 μsec, min-max MR and full FOV. The typical scan rate can be further boosted by windowing the FOV.
