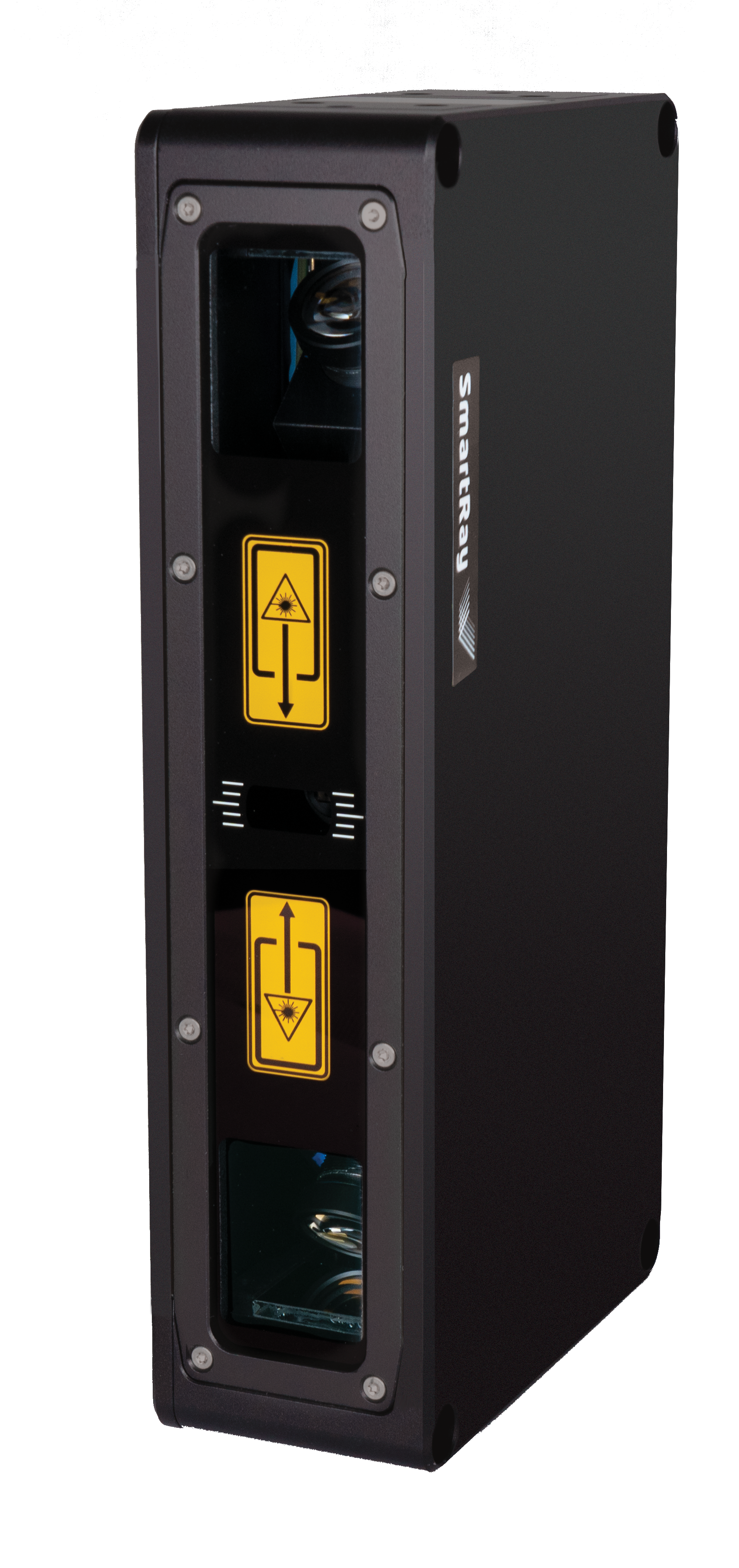

DUAL-HEAD ECCO 95.200+

가려진 부분이 없는 정확한 스캐닝

가려진 부분이 없는 3D 스캐닝이 가능한 ECCO 95+ 시리즈는 최초의 고해상도 듀얼 헤드 3D센서 솔루션을 제공합니다. 두 번째 카메라를 반대 각도에서 사용하여 검사하지 못하는 부분이 없도록 합니다.

Properties & Benefits
SHADOW-FREE
two camera 3D scanning for optimum target visibility
ULTRA-HIGH RESOLUTION
the capability to inspect extremely fine features
SUPERIOR IMAGE QUALITY
the best repeatability under challenging conditions
SmartRay™ DUAL - HEAD ECCO 95.200+
Typical field of view (near | mid | far) 1125 | 190 | 280mm
Typical measurement range 1300 mm (-125mm, +175mm)
Stand-off distance320 mm
Typical vertical resolution (Z) 112 - 50 μm
Typical lateral resolution (Y) 160 - 138 μm
Z-linearity 2, 50.015 %
Z-repeatability 4, 53.3 μm
weightApprox. 1350g
part numbers
  • 3.001.604 (class 2)
  • 3.004.604 (class 3R)

Maximum points / 3D profile3840
Typical scan rate 1Approx. from 1 kHz up to 10 kHz
Typical 3D point rate 1Approx. from 0.7 up to 15 million points/sec
InterfaceGigabit Ethernet ( 1 Gbit/ sec)
Inputs2x Inputs (5 – 24 VDC) Quadrature Encoder (AB-Channel, RS-422 standard)
Note: Typical values may vary up to ±5% due to optical and production tolerances
1 Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time. A ‚scan‘ by definition considers maximum points/3D profile i.e. full FOV.
The typical scan/point rate range has been estimated considering an exposure time of 1 μsec, min-max MR and full FOV. The typical scan rate can be further boosted by windowing the FOV.
