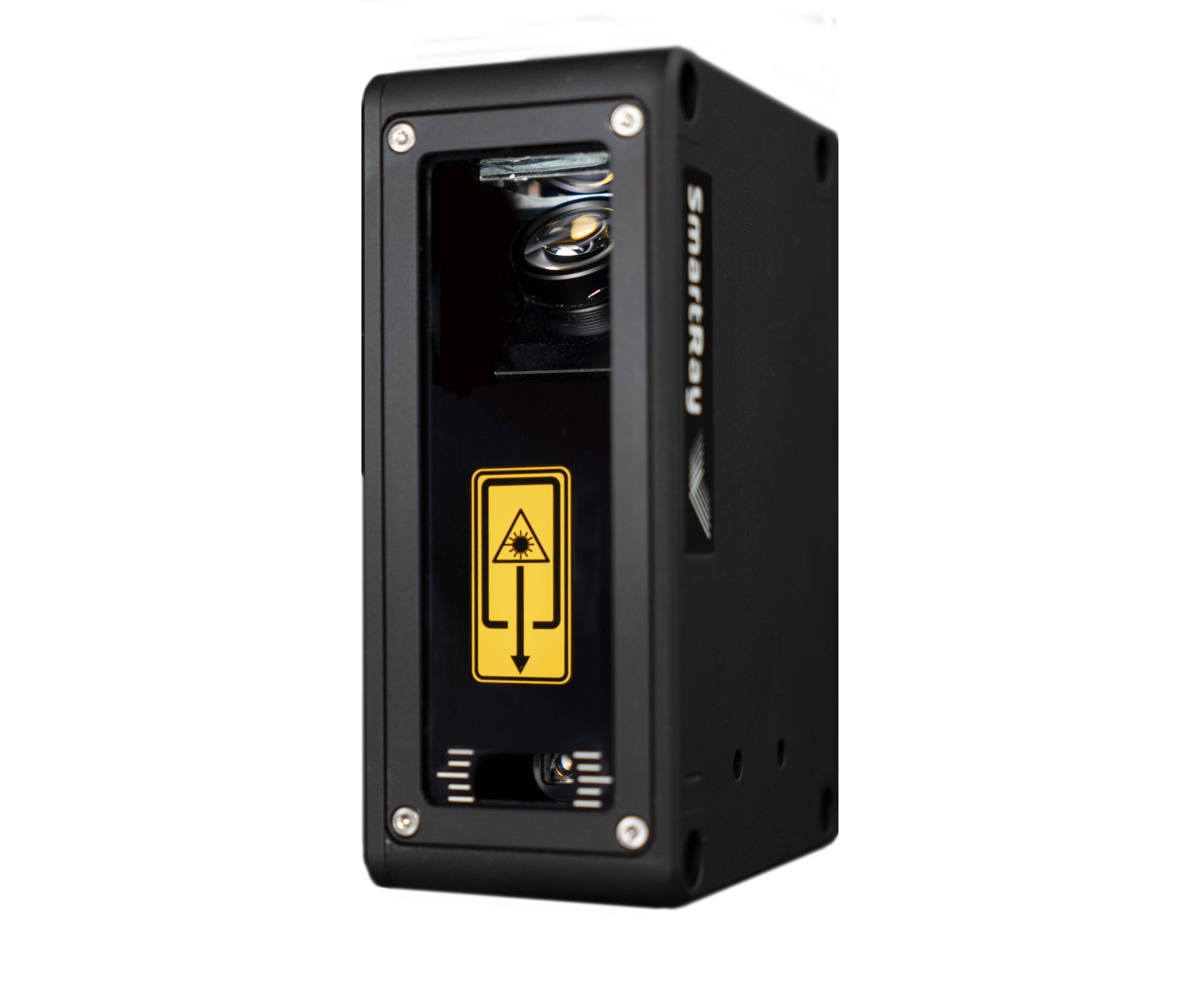

ECCO 95.010+

고속 고화질 3D 센싱

탁월한 3D 이미지 품질을 자랑하는 ECCO 95+ 시리즈는 궁극의 센서 기술을 보여줍니다. 빠른 속도와 초고화질, 개선된 전력 소비량을 자랑하며, 통합하기 쉬운 콤팩트 디자인으로 구현되었습니다.

Properties & Benefits
Superior 3D image quality
Best repeatability under challenging conditions
Reduced power consumption
Lower operating termperature for better metrology performance
Industrial compact housing
Better stability and flexibility for machine and robot integration
SmartRay™ ECCO 95.010+
Typical field of view (near | mid | far) 110.5 | 11 | 11.5mm
Typical measurement range 15 mm
Stand-off distance25 mm
Typical vertical resolution (Z) 10.37 - 0.45 μm
Typical lateral resolution (Y) 15.8 - 6.8 μm
Z-linearity 2, 50.015 %
Z-repeatability 4, 50.1 μm
weightApprox. 550g
part numbers
  • 3.001.202 (class 2)
  • 3.004.202 (class 3R)

Maximum points / 3D profile1920
Typical scan rate 1Approx. from 1 kHz up to 10 kHz (with full FOV)
Typical 3D point rate 1Approx. from 0.7 up to 15 million points/sec
InterfaceGigabit Ethernet ( 1 Gbit/ sec)
Inputs2x Inputs (5 – 24 VDC) Quadrature Encoder (AB-Channel, RS-422 standard)
Note: Typical values may vary up to ±5% due to optical and production tolerances
1 Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time. A ‚scan‘ by definition considers maximum points/3D profile i.e. full FOV.
The typical scan/point rate range has been estimated considering an exposure time of 1 μsec, min-max MR and full FOV. The typical scan rate can be further boosted by windowing the FOV.
